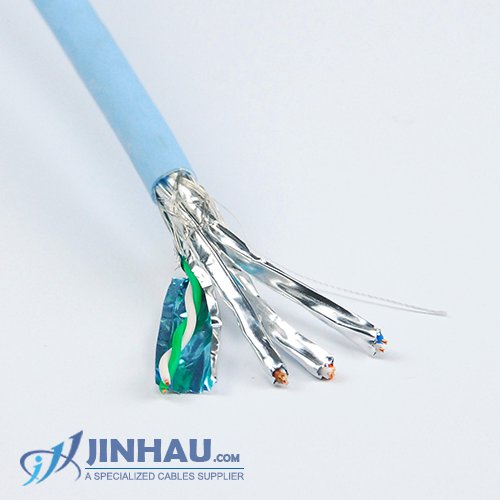

Lan Cable Cat7 S/FTP 23 AWG UL/CE/RoHS/REACH/ISO14001 CM/CMR

Application：
Volp , ISDN
Token , 100M TP-PDM
Analong and Data Video
TR-16 Active And Passive
155M/662m/1.2GATM
IEEE802.3：100Bease;100Base-T 1000Base-T 10GBase-T

Description：
Rated temperature：60℃，75℃，90℃
Reference standard：UL444，UL1581
Solid bare copper conductor
PVC/LSZH jacket, RoHS/REACH compliant
Comply to IEC 61156-5,EN 50173 &ISO11801
Operating temperature：-30～+50℃
Minimum bending radius: 8D
Quantity:
Inquire Add to Basket

  • LC7SCIBEM

  • Jinhau

  • 85444911

  • Cat7

  • Bare Solid Copper

  • Shielded

  • -30℃～+50℃

  • No

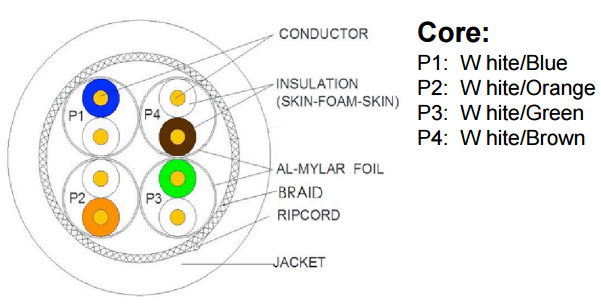

CAT7SFTP

Application: Suitable for structured premises cabling For transmission of digital and analogue voice and data signals. Especially suitable for all Class F applications. ISDN,Ethernet 10 Base-T,Fast Ethernet 100 Base-T,Gigabit Ethernet 1000Base-T ,10G Base-T.(IEEE 802.3) Token Ring4/16Mbit/s,TP-PMD/TP/DDI 125Mbit/s,ATM 155Mbit/s. (IEEE 802.5 )

Conductor Material Solid Bare Copper
Size 0.58+/-0.008mm
Insulation Material PE(Skin-Foam-Skin)
Diameter 1.40+/-0.05mm
AVG. Thickness 0.41+/-0.05mm
Assembly Direction S
No. of Insulation 4 Pair
Shielding Material Al-Foil Screneed
Braid Material Tinned copper 16*7*0.10TC
Jacket Material LSZH
Diameter 8.1+/-0.3mm
AVG. Thickness 0.60+/-0.1mm
Color ICE BLUE(#283C)
Marking Color BLACK

1.Impedance 4 - 100MHz 100±15 (ohms)
100 - 200MHz 100±22 (ohms)
200 - 1000MHz 100±32 (ohms)
2. Max. Conductor DC Resistance 20℃ 84(ohms/km)
3.Resistance unbalance (%) max 2.5
4.Pair-to-Ground Capacitance Unbalance 330 (pF/100m)
5.Nominal Velocity of Propagation (NVP):74%
6.Transfer Impendance Max10 mohms/m@100MHz
7 Coupling Attenuation Min 80 dB
8.Installation temperature 0~50℃
9.Operation temperature -20~60℃

Frequency RL IL Propagation Delay Delay Skew NEXT PSNEXT ELFEXT PSELFEXT
Specified(Min) Typical Specified(Max) Typical Specified(Max) Typical Specified(Max) Typical Specified(Min) Typical Specified(Min) Typical Specified(Min) Typical Specified(Min) Typical
(MHz) (dB) (dB) (dB) (dB) (ns) (ns) (ns) (ns) (dB) (dB) (dB) (dB) (dB) (dB) (dB) (dB)
1 20.0 22.0 2.1 2.1 570 540 25.0 18.0 78.0 88.0 75.0 84.0 78.0 84.0 75.0 80.0
4 23.0 25.0 3.7 3.7 552 522 25.0 18.0 78.0 88.0 75.0 84.0 78.0 84.0 75.0 80.0
8 24.5 26.5 5.2 5.2 547 517 25.0 18.0 78.0 88.0 75.0 84.0 77.2 84.0 74.2 80.0
10 25.0 27.0 5.9 5.9 545 515 25.0 18.0 78.0 88.0 75.0 84.0 75.3 84.0 72.3 80.0
16 25.0 27.0 7.4 7.2 543 513 25.0 18.0 78.0 88.0 75.0 84.0 71.2 84.0 68.2 80.0
20 25.0 27.0 8.3 8.1 542 512 25.0 18.0 78.0 88.0 75.0 84.0 69.3 84.0 66.3 80.0
25 24.3 26.3 9.3 9.1 541 511 25.0 18.0 78.0 88.0 75.0 84.0 67.3 84.0 64.3 80.0
31.25 23.6 24.6 10.4 10.2 540 510 25.0 18.0 78.0 88.0 75.0 84.0 65.4 74.0 62.4 70.0
62.5 21.5 22.5 14.9 14.7 539 509 25.0 18.0 75.5 82.5 72.5 78.5 59.4 68.5 56.4 64.5
100 20.1 21.1 19.0 18.8 538 508 25.0 18.0 72.4 78.4 69.4 74.4 55.3 64.4 52.3 60.4
200 18.0 19.0 27.5 27.0 537 507 25.0 18.0 67.9 72.9 64.9 68.9 49.3 58.9 46.3 54.9
250 17.3 18.3 31.0 30.5 536 506 25.0 18.0 66.4 72.4 63.4 68.4 47.3 58.4 44.3 54.4
300 17.3 18.3 34.2 33.7 536 506 25.0 18.0 65.2 71.2 62.2 67.2 45.8 54.3 42.8 51.3
400 17.3 18.3 40.0 39.5 536 506 25.0 18.0 63.4 69.4 60.4 65.4 43.3 49.4 40.3 46.4
500 17.3 18.3 45.3 44.8 536 506 25.0 18.0 61.9 67.9 58.9 63.9 41.3 48.9 38.3 45.9
600 17.3 18.3 50.1 49.6 535 505 25.0 18.0 60.7 66.7 57.7 62.7 39.7 45.7 36.7 42.7
700 16.6 17.6 56.6 56.1 535 505 25.0 18.0 59.7 65.7 56.7 61.7 38.4 44.8 35.4 41.8
800 16.1 17.1 60.9 60.4 535 505 25.0 18.0 58.9 64.9 55.9 60.9 37.2 44.2 34.2 41.2
900 15.5 16.5 65.0 64.5 535 505 25.0 18.0 58.1 64.1 55.1 60.1 36.2 43.1 33.2 40.1
