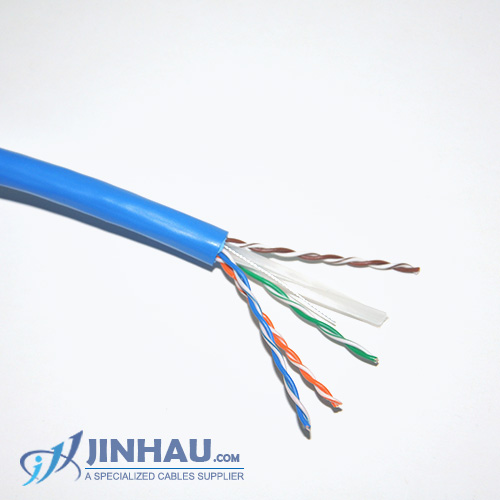

Lan Cable Cat6A UTP 23 AWG UL/CE/RoHS/REACH/ISO14001 CM/CMR

Augmented for CAT6A-10GBASE-T, 600MHz
23AWG Solid 4PR F/FTP,EA/PR AL Foil,TIA/EIA-568-C.2,
ISO IEC 11801 ED2 Class Ea,EN 50575:2014,LSZH Jacket
TIA/EIA 568-C.2 ISO/IEC 11801 Ed2 Class Ea
EU RoHS 2011/65 EU Compliant
IEC60332-3C EN50575:2014
Quantity:
Inquire Add to Basket

  • L6AUCIRD

  • Jinhau

  • Cat6A

  • Bare Solid Copper

  • Unshielded

  • -30℃～+75℃

  • Yes

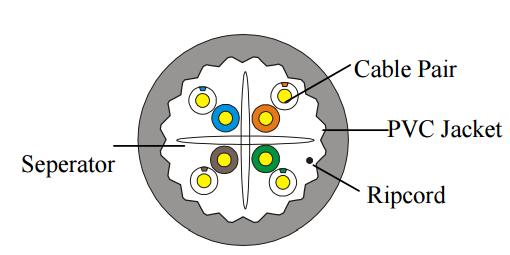

CAT6AUTP

CAT6A-Augmented UTP cables meet 10GBaseT performance standards for: TIA/EIA 568-C.2 Category 6a; ISO/IEC 11801 Ed2 Class Ea; and EN 50173-1:2011.



Each CAT6A UTP cable is performance optimized with 4 balanced twisted pairs on 23 AWG insulated solid bare copper conductors with a center spline separating each pair. The SCP CAT6A cable is constructed to create a round and flexible cable for easy pulling and stripping of the PVC jacket.

Conductor material Annealed bare copper
diameter 0.574 Up +0.005
Down -0.005
Insulat. Material Solid HDPE
Diameter 1.01±0.02mm
Jacket Thickness 0.65±0.05 mm
O.D 6.9±0.3 mm
Surface Sooth , tight
Material PVC
Color Per request
Ink jet printing jacket
Height 3.0±0.3mm
Color Black
Interval, tolerance ≤±0.5%, 1m
Color codes White(blue)/Blue Whithe(Orange.)/ orange
White(Green)/Green Whithe(Brown)/
Brown
Packing Wooden reel,   36 reels each pallet
Weight: N.W.:14.50KGS / G.W: 16.50KGS
Length 305±1.5m
Ripcord Yes Drain wire No.
Physical performance Before aging Tensile Strength(Mpa)≥13.5
Elongation(%)              ≥150
Aging condition(℃×hrs) 100℃×24h×7d
Before aging Tensile Strength(Mpa ≥12.5
Elongation(%)          ≥125
Cold bend(-20±2℃×4h)   8times of cable
O.D., No crack
Electrical Performance (20℃) 1.0-600MHz
≤45		 Delay skew(ns/100m)
NVP   (%)                                  68
D.C Resistance(Ω/100m)max          9.38
D.C Resistance unbalance(%) max 2.0

Frequency RL ATT NEXT DELAY PSNEXT ELFEXT PSELFEXT
(MHz) ≥dB ≤dB ≥dB ≤ns ≥dB ≥dB ≥dB
1 20 2.1 74.3 570 72.3 67.8 64.8
4 23 3.8 65.3 552 63.3 55.8 52.8
8 24.5 5.3 60.8 546.7 58.8 49.7 46.7
10 25 5.9 59.3 545.4 57.3 47.8 44.8
16 25 7.5 56.2 543 54.2 43.7 40.7
20 25 8.4 54.8 542.1 52.8 41.8 38.8
25 24.3 9.4 53.3 541.2 51.3 39.8 36.8
31.25 23.6 10.5 51.9 540.4 49.9 37.9 34.9
62.5 21.5 15 47.4 538.6 45.4 31.9 28.9
100 20.1 19.1 44.3 537.6 42.3 27.8 24.8
200 18 27.6 39.8 536.5 37.8 21.8 18.8
250 17.3 31.1 38.3 536.3 36.3 19.8 16.8
300 16.8 34.3 37.1 536.1 35.1 18.3 15.3
500 15.2 45.3 33.8 535.6 31.8 13.8 10.8
*600 14.7 50.1 32.6 535.5 30.6 12.2 9.2
