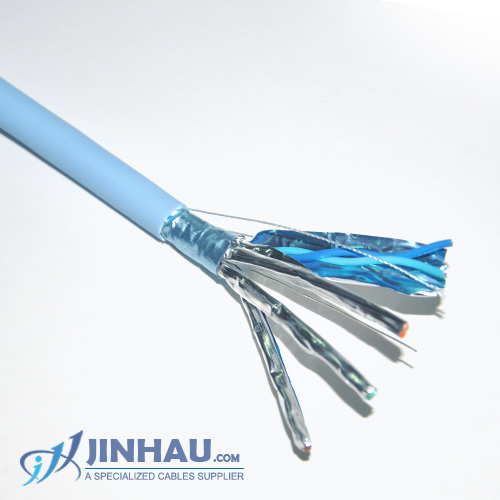

Lan Cable Cat6A F/FTP 23 AWG UL/CE/RoHS/REACH/ISO14001 CM/CMR

Augmented for CAT6A-10GBASE-T, 600MHz
23AWG Solid 4PR F/FTP,EA/PR AL Foil,TIA/EIA-568-C.2,
ISO IEC 11801 ED2 Class Ea,EN 50575:2014,LSZH Jacket
TIA/EIA 568-C.2 ISO/IEC 11801 Ed2 Class Ea
EU RoHS 2011/65 EU Compliant
IEC60332-3C EN50575:2014
Quantity:
Inquire Add to Basket

  • Jinhau

  • Cat6A

  • Bare Solid Copper

  • Shielded

  • -30℃～+75℃

  • Yes

Category 6A F/FTP cables consistently outperform other Cat6 Augmented 10GBaseT cables. These cables are certified to meet today's demanding commercial and residential Networking and A/V applications for Twisted Pair cables. and they are designed for superior performance on all HD distribution applications over Cat6A F/FTP cables.

Category 6A F/FTP cables exceed 10GBaseT performance standards for: TIA/EIA 568-C.2 Category 6a; ISO/IEC 11801 Ed2 Class Ea; and EN 50173-1:2011.

Category 6A F/FTP cable is performance optimized with 4 balanced twisted pairs on 23 AWG insulated solid bare copper conductors with each pair AL foil shielded. HNCPROPLUS+ 6A cables are constructed to create a round and flexible cable for easy pulling and stripping of the Low Smoke Zero Halogen (LSZH) jacket.

Conductor Material Solid Bare Copper
Size 23AWG X 4P
Construction 1/0.57+/-0.005mm
Insulation Material Skin-foam-skin PE
Min.Thickness 0.350mm
AVG.Thickness 0.360mm
Diameter 1.33+/-0.05mm
Colors White/Blue
White/Orange
White/Green
White/Brown
Pair screen Every pair screen Aluminum Foil
Overall screen Shield Aluminum Foil
Drain wire TC 1/0.40+/-0.005
Jacket Material LSZH
Min.Thickness 0.54mm
AVG.Thickness 0.60mm
Diameter 7.20+/-0.20mm
Rip Cord Nylon
Color Per request
Operating Temperature Range - 20°C + 75°C
Voltage Rating 300V
Conductor Resistance Max 72.2ohm/km at 20°C
Dielectric Strength Min AC1.5KV
Spark Test 5.0KV
Insulation Unaged Tensile Strenght 16.5Mpa

Elongation 500%
Aged Tensile Strenght 14.2Mpa(100°C 168h)

Elongation 250%(100°C 168h)
Jacket Unaged Tensile Strenght 11.3 Mpa

Elongation 100%
Aged Tensile Strenght 8.5Mpa(100°C 168h)

Elongation 50%(100°C 168h)
DC Resisitance Unbalance Max 5%
Pair-to-Ground Capacitance Unbalance Max 3300pF/km
Characteristic Impedance 100+/-15OHM
Nominal Velocity of Propagation(%) 67~69
Propagation Delay Max 536ns/100m
Delay Skew Max 40ns/100m

ITEM
Frequency		 Attenuation Max
(dB/100m)		 NEXT Min (dB) PS NEXT Min (dB) SKW RL Min (dB) ELFEXT Min (dB) PS ELFEXT Min (dB) VOP %

Standard F/FTP Standard F/FTP Standard F/FTP Standard F/FTP Standard F/FTP Standard F/FTP Standard F/FTP Standard F/FTP
4 3.8 3.26 66.3 97.48 64.3 97 ≤45 ≤15 23 33.08 61.3 112.41 59.3 99.85 68% 70%
10 5.9 5.13 60.3 111.64 58.3 103.91 25 34.8 53.3 107.63 51.3 97.21
16 7.5 6.56 57.2 112.19 55.2 96.87 25 36.34 49.2 109.01 47.2 97.45
20 8.4 7.37 55.8 108.21 53.8 95.76 25 30.31 47.3 93.91 45.3 96.51
31.25 10.5 9.33 52.9 97.37 50.9 93.8 23.6 30.68 43.4 102.59 41.4 93.52
62.5 15 13.24 48.4 101.14 46.4 98.75 21.5 30.21 37.4 97.9 35.4 90.2
100 19.1 16.8 45.3 99.9 43.3 90.47 20.1 28.3 33.3 94.71 31.3 84.85
200 27.6 23.85 40.8 91.74 38.8 81.3 18 32.76 27.3 96.93 25.3 77.75
250 31.1 26.78 39.3 89.96 37.3 82.51 17.3 30.05 25.3 88.04 23.3 75.96
300 34.3 29.35 38.1 81.96 36.1 81.38 17.3 30.52 23.8 76.48 21.8 76.15
400 40.1 33.95 36.3 83.87 34.3 77.2 17.3 22.62 21.3 68.79 19.3 68.39
500 45.3 38.03 34.8 90.72 32.8 78.95 17.3 25.38 19.3 67.91 17.3 60.27
600
41.97
80.93
69.53

24.91
62.86
53.54 −−− −−−
