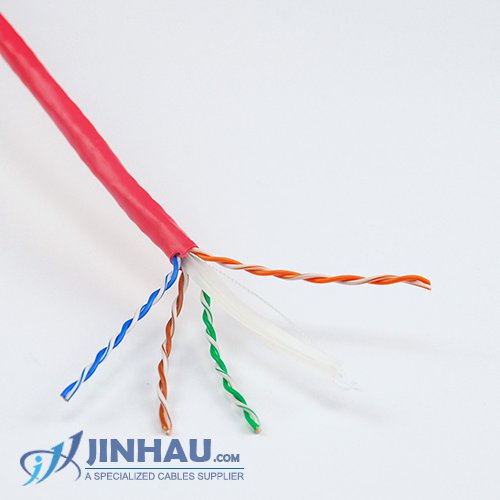

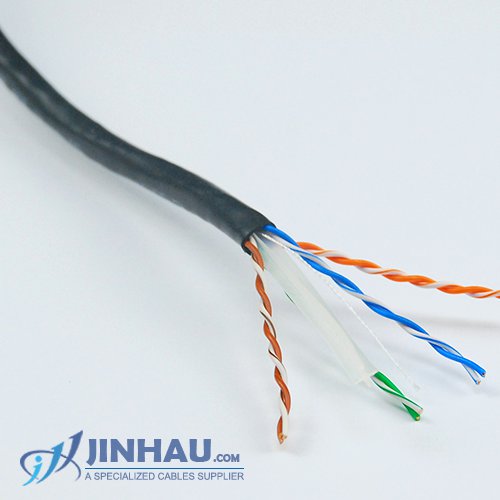

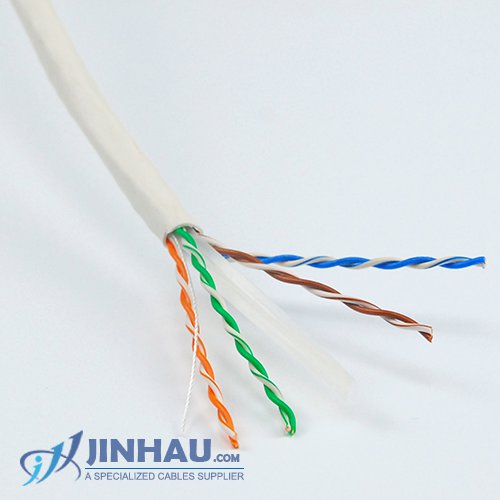

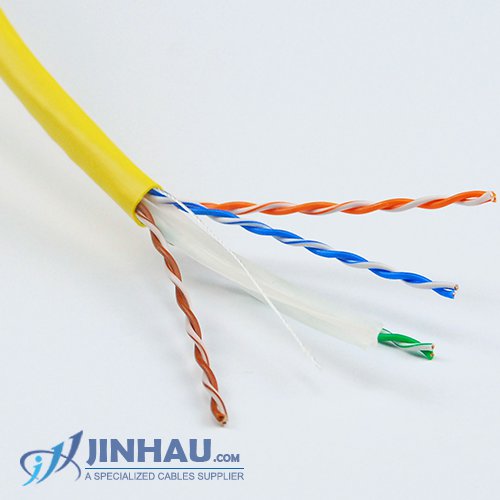

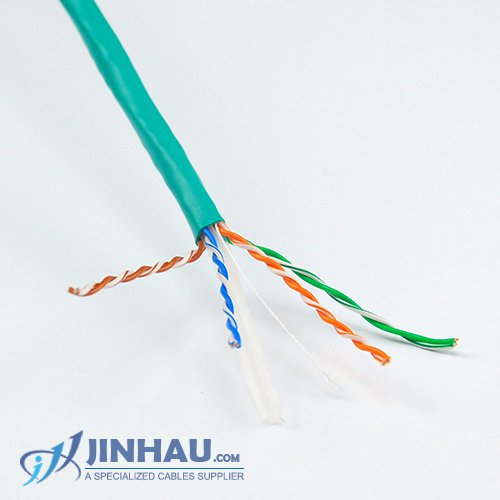

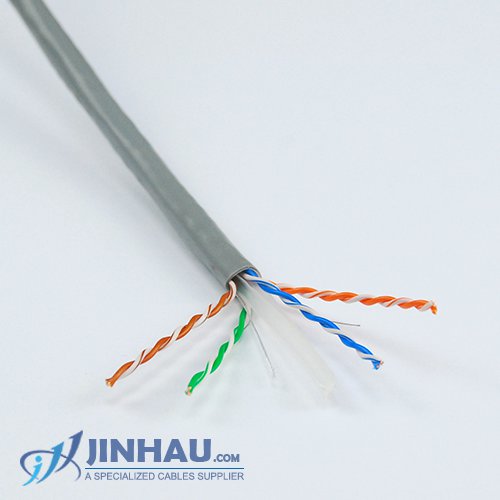

Lan Cable Cat6 UTP 23 AWG UL/CE/RoHS/REACH/ISO14001 CM/CMR

Application:
100 Base-TX
100VG-AnyLAN
1000Base-T(Gigabit Ethernet)
ATM
Noisy Environments

Product Description:
Rated temperature: 60℃, 75℃, 90℃
Reference Standard: UL444, UL1581
Bare solid copper conductor
RoHS/REACH Complied PVC or PE or LSZH Jacket
Complies to TIA/EIA-568-C.2, ISO/IEC 11801,
EN50173&IEC61156-5
Installation temperature:-30℃~+50℃
Minimum bending radius:4D
Quantity:
Inquire Add to Basket

  • LC6UCIRDM

  • Jinhau

  • 85444911

  • Cat6

  • Bare Solid Copper

  • Shielded

  • -30℃～+50℃

  • Yes

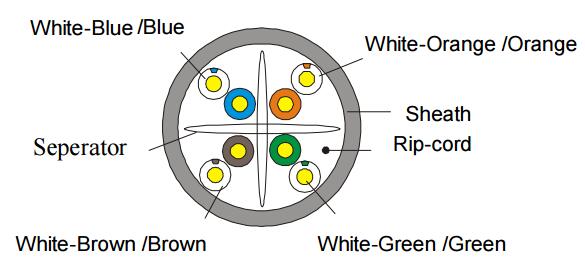

CAT6SEC
Application:
100 Base-TX
100VG-AnyLAN
1000Base-T(Gigabit Ethernet)
ATM
Noisy Environments



 Product Description:
Rated temperature: 60℃, 75℃, 90℃
Reference Standard: UL444, UL1581
Bare solid copper conductor
RoHS/REACH Complied PVC or PE or LSZH Jacket
Complies to TIA/EIA-568-C.2, ISO/IEC 11801,
EN50173&IEC61156-5
Installation temperature:-30℃~+50℃
Minimum bending radius:4D

Conductor Resistance Max. 9.5 ohm/100m
Resistance Unbalance Max. 2%
Insulation Resistance 150 ohm/KM
Mutual Capacitance Max. 5600pF/100m
Capacitance Unbalance Max. 330pF/100m
Impedance 100+/-15 ohm
Spark Test 2000V
Velocity of Propagation 67%

FREQUENCY ATTENUATION NEXT PSNEXT ELFEXT PSELFEXT RL
(Mhz) (dB/100m) (dB) (dB) (dB) (dB) (dB)

 		 Typical Maximum Typical Maximum Typical Maximum Typical Maximum Typical Maximum Typical Maximum
1 2 1.8 74.3 83.3 72.3 79.3 67.8 77.1 64.8 74.4 20 27
4 3.8 3.5 65.3 76 63.3 72 55.8 65.3 52.8 62 23 34.5
8 5.3 5 60.8 74.1 58.8 69.3 49.7 60.6 46.7 57.6 24.5 37.2
10 6 5.7 59.3 70.8 57.3 67.5 47.8 58.8 44.8 55.9 25 38.1
16 7.6 7.2 56.2 61.3 54.2 58.7 43.7 47.3 40.7 45.8 25 37.7
20 8.5 8.1 54.8 62.1 52.8 58.2 41.8 45 38.8 44.1 25 36.8
25 9.5 9.1 53.3 64.8 51.3 61.8 39.8 43.4 36.8 42.6 24.3 37
31.25 10.7 10.2 51.9 57.4 49.9 55.8 37.9 41 34.9 40.4 23.6 31
62.5 15.4 14.8 47.4 55.5 45.4 54.2 31.9 37.8 28.9 36.2 21.5 30.2
100 19.8 18.8 44.3 58.8 42.3 55.5 27.8 35.4 24.8 33.6 20.1 30.4
150 24.7 23.2 41.7 51.1 39.7 48.4 24.3 34.9 21.3 31.8 18.9 24
200 29 26.7 39.8 48.3 37.8 46.8 21.8 31.5 18.8 29 18 23.4
250 32.8 30.4 38.3 49.4 36.3 47.8 19.8 32.9 16.8 29.7 17.3 21.9
