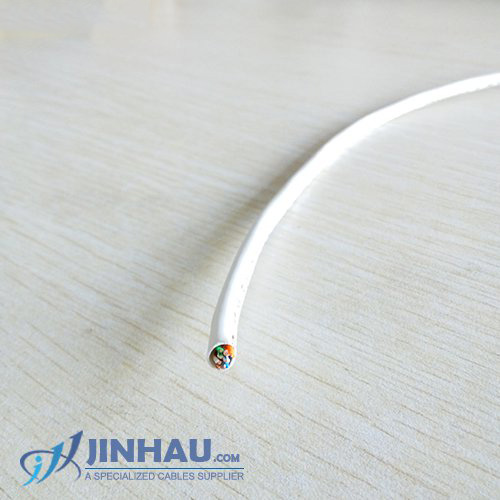

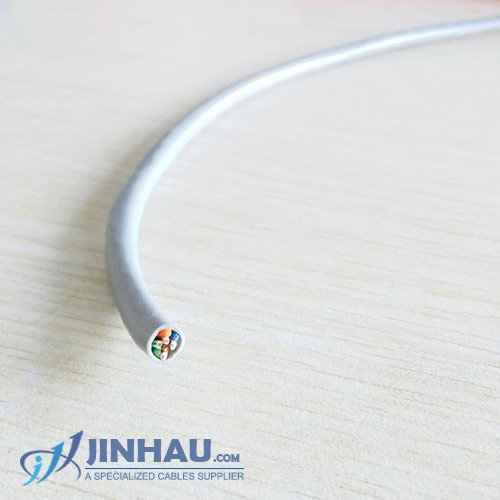

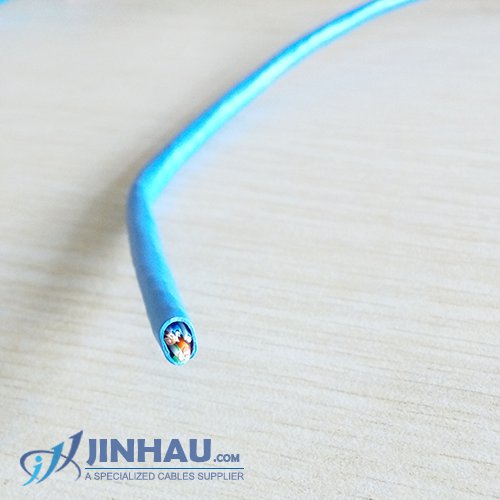

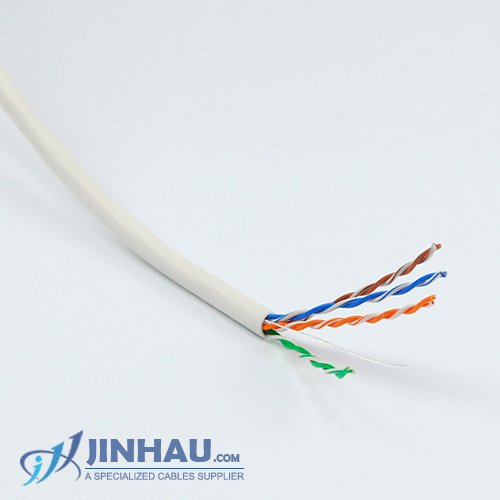

Lan Cable Cat5e UTP 24 AWG UL/CE/RoHS/REACH/ISO14001 CM/CMR

Application:
100 Base-TX
100 Base-T4
100VG-AnyLAN
1000 Base-T
(Gigabit Ethernet)
ATM

Rated temperature: 60℃, 75℃, 90℃
Reference Standard: UL444, UL1581
Bare solid copper conductor
RoHS/REACH Complied PVC, PE or LSZH Jacket
Complies to TIA/EIA -568-C.2 & ISO/IEC 11801
Installation temperatu:-30℃~+50℃
Quantity:
Inquire Add to Basket

  • LC5EUIWEM

  • Jinhau

  • 85444911

  • Cat5e

  • Bare Solid Copper

  • Unshielded

  • -30℃～+50℃

  • Yes

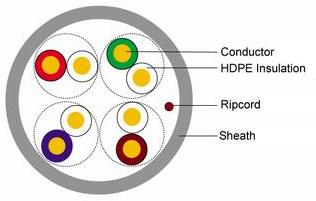

UL-CE-RoHS-ISO-Approved-UTP-Lszh-Cm-Cmr-Cat5e-Communication-Cable

Application:
100 Base-TX
100 Base-T4
100VG-AnyLAN
1000 Base-T
(Gigabit Ethernet)
ATM

Product Description:
Rated temperature: 60℃, 75℃, 90℃
Reference Standard: UL444, UL1581
Bare solid copper conductor
RoHS/REACH Complied PVC, PE or LSZH Jacket
Complies to TIA/EIA -568-C.2 & ISO/IEC 11801
Installation temperatu:-30℃~+50℃
Minimum bending radius:＞4P 4D

Conductor Resistance Max. 9.38 ohm/100m
Resistance Unbalance Max. 2%
Insulation Resistance 150 ohm/KM
Mutual Capacitance Max. 5600pF/100m
Capacitance Unbalance Max. 330pF/100m
Impedance 100+/-15 ohm
Spark Test 2000V
Velocity of Propagation 67%


 		 Attenuation RL Next PS Next
(Mhz) (dB/100M) (dB) (dB) (dB/100m)
1MHz 2.0 20 65.3 63.5
4MHz 4.1 23 56.3 54.2
8MHz 5.8 24.5 52.4 50.5
10MHz 6.6 25 51.3 49.2
16MHz 8.2 25 49.3 47.4
20MHz 9.3 25 48.8 46.9
25MHz 10.4 24 45.3 43.4
31.25MHz 11.7 23 43.0 41.8
62.5MHz 17.0 21 39.2 37.2
100MHz 22.0 20 36.3 34.4
