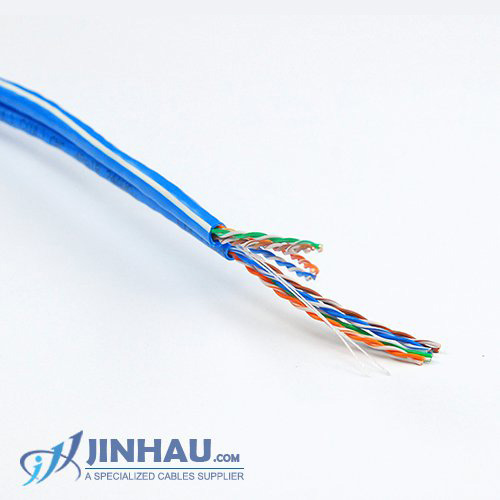

Duplex Cat5E Lan Cable UTP, 24AWG, UL Listed, CM/CMR, Blue

Application:
100 Base-TX
100VG-AnyLAN
1000Base-T(Gigabit Ethernet)
ATM
Noisy Environments

Product Description:
Rated temperature: 60℃, 75℃, 90℃
Reference Standard: UL444, UL1581
Bare solid copper conductor
RoHS/REACH Complied PVC or PE or LSZH Jacket
Complies to TIA/EIA-568-C.2, ISO/IEC 11801,
EN50173&IEC61156-5
Installation temperature:-30℃~+50℃
Minimum bending radius:4D
Quantity:
Inquire Add to Basket

  • Jinhau

  • 85444911

D-C Resistance Unbalance: Max. 5%;
Pair–to–Ground Capacitance Unbalance: Max. 330 pF/100m;
Characteristic Impedance (1-100MHz): 100 +/- 15 ohms;
Propagation Delay Skew (1-100MHz): Max. 45ns/100m;

(2) Cat 5e Component: (4P + 4P)         16C
Conductor:                                                      Solid Bare Copper
AWG                                                                 24
Construction (mm)                                      1/0.511
Stranded Dia. (±0.005mm)                       0.511
Insulation:                                                       PE
Nom. Thickness (mm)                                 0.19
Insulation Dia. (±0.05mm)                        0.925
Ripcord                                                              210Dx6 nylon thread
Jacket:                                                               PVC
Nom. Thickness (mm)                                 0.43
Outer Dia. (±0.10mm)                                 5.0
(2)Cat5e Component longitudinal placement:
Outer Dia. (±0.2mm)                                   10.2mm


Frequency Attenuation NEXT ACR PSNEXT ELFEXT PSELFEXT RL DELAY
(MHz) (dB/100m) (dB/100m) (dB) (dB) (dB) (dB/100m) (dB) (ns/100m)
0.772 1.8 67 65.2 64 66 63.0 19.4 575.0
1 2 65.3 63.3 62.3 63.8 60.8 20.0 570.0
4 4.1 56.3 52.2 53.3 51.7 48.7 23.0 552.0
8 5.8 51.8 46 48.8 45.7 42.7 24.5 546.7
10 6.5 50.3 43.8 47.3 43.8 40.8 25.0 545.0
16 8.2 47.3 39.1 44.4 39.7 36.7 25.0 543.0
20 9.3 45.8 36.5 42.8 37.7 34.7 25.0 542.0
25 10.4 44.3 33.9 41.3 35.8 32.8 24.3 541.2
31.25 11.7 42.9 31.2 39.9 33.9 30.9 23.6 540.4
62.5 17 36.4 19.4 35.4 27.8 24.6 21.5 538.6
100 22 35.3 13.3 32.3 23.8 20.8 20.1 538.0
200 32.4 30.8 - 27.8 17.8 14.8 18.0 536.6
300 41 28.2 - 25.2 14.3 11.3 16.8 536.1
350 44.9 27.2 - 24.2 12.9 9.9 16.3 535.9
