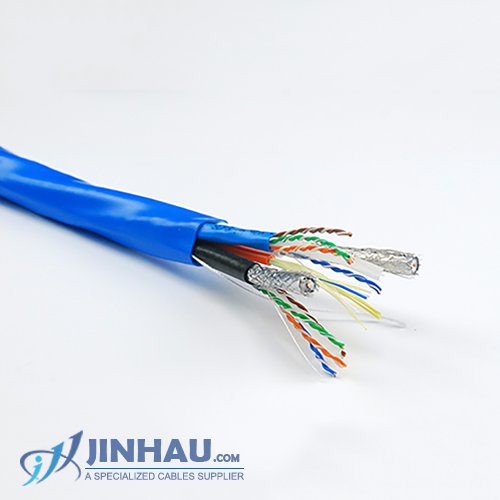

2x CAT6 23 AWG UTP + 2x RG6/U QUAD SHIELD COAX BC 18 AWG - (BUNDLED) BLUE

Application:
100 Base-TX
100VG-AnyLAN
1000Base-T(Gigabit Ethernet)
ATM
Noisy Environments

Product Description:
Rated temperature: 60℃, 75℃, 90℃
Reference Standard: UL444, UL1581
Bare solid copper conductor
RoHS/REACH Complied PVC or PE or LSZH Jacket
Complies to TIA/EIA-568-C.2, ISO/IEC 11801,
EN50173&IEC61156-5
Installation temperature:-30℃~+50℃
Minimum bending radius:4D
Quantity:
Inquire Add to Basket

  • Jinhau

  • 85444911

Applications:
Structured Wiring Support Cable for Home Automation, General Purpose Lan/CATV, Balun support and media transmission for residential, light commercial and institutional applications.We offers multiple configurations of bundled composite cables for residential and commercial structured wiring solutions. These cables reduce installation time and reduce the chance of damage to the individual cables due to improper installation.Our Structured-Composite cables support many technologies for data/CATV/Satellite/Audio/ and high definition signals.



Our Structured-Composite cables are In-Wall rated, NEC CM, CEC CMG FT4, RoHS, CE, and UL listed. Packaged on 1000ft or 500ft spool/drum.

Frequency
(MHz)		 Impedance
(Ohm)		 Return Loss
(dB)		 Attenuation
(dB/100m)		 Next Worst Pair
(dB)		 Next Power
Sum (dB)		 ELFEXT Worst
Pair (dB)		 ELFEXT Power
Sum(dB)		 Nominal Velocity
Propagation

1.0
100 15
 		 20.0 2.0 74.3 72.3 67.8 64.8 0.65
4.0 23.0 3.8 65.3 63.3 55.8 52.8
8.0 24.5 5.3 60.8 58.8 49.7 46.7
10.0 25.0 6.0 59.3 57.3 47.8 44.8
16.0 25.0 7.6 56.2 54.2 43.7 40.7
20.0 25.0 8.5 54.8 52.8 41.8 38.8
25.0 24.3 9.5 53.3 51.3 39.8 36.8
31.25 23.6 10.7 51.9 49.9 37.9 34.9
62.5 21.5 15.4 47.4 45.4 31.9 28.9
100.0 20.1 19.8 44.3 42.3 27.8 24.8
200.0 100 22 18.0 29.0 39.8 37.8 21.8 18.8
250.0 17.3 32.8 38.3 36.3 19.8 16.8
