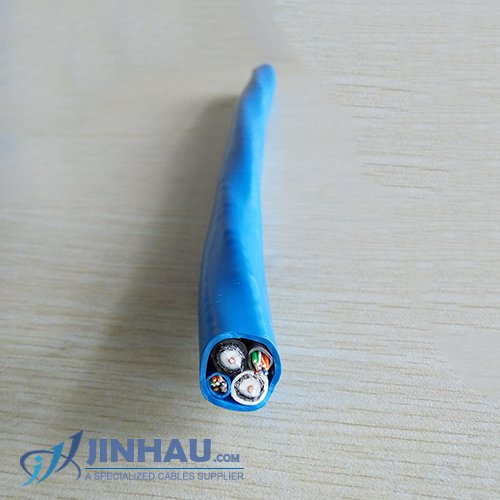

2x CAT5E 24 AWG UTP + 2x RG6/U QUAD SHIELD COAX BC- (BUNDLED)- BLUE

2x CAT5E 24 AWG UTP + 2x RG6/U QUAD SHIELD COAX BC
Quantity:
  • Jinhau

  • 85444911

CAT5E+RG6U

Applications:

Structured Wiring Support Cable for Home Automation, General Purpose Lan/CATV, Balun support and media transmission for residential, light commercial and institutional applications.We offers multiple configurations of bundled composite cables for residential and commercial structured wiring solutions. These cables reduce installation time and reduce the chance of damage to the individual cables due to improper installation.Our Structured-Composite cables support many technologies for data/CATV/Satellite/Audio/ and high definition signals.



Our Structured-Composite cables are In-Wall rated, NEC CM, CEC CMG FT4, RoHS, CE, and UL listed. Packaged on 1000ft or 500ft spool/drum.

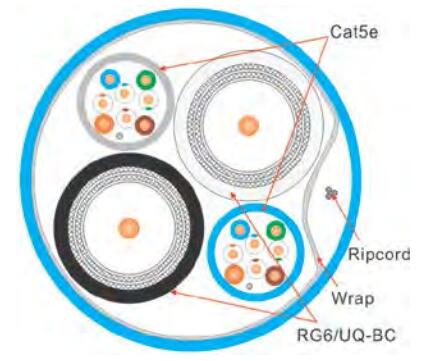

Construction (inside-out)
--------------------
Component 1: RG6/UQ-BC
18AWG(0.0403in/1.02mm) Bare copper
Skin Foam PE 0.0180in/4.57mm
Bonded Aluminium Foil
Aluminum Wire Braiding 80 x 0.12 mm, coverage 60%
Dbl Aluminum Foil
Aluminum Wire Braiding 64 x 0.12 mm, coverage 40%
PVC 7.25mm
--------------------
Component 2: Cat5e UTP
24AWG Bare copper
0.93mm HDPE
Ripcord
OD5.3mm PVC
